IPM1205-XGA

Name: 12.1" IP65 Panel Mount Industrial LCD Monitor (1024x768)
SKU: IPM1205-XGA

12.1″ IP65 Panel Mount Industrial LCD Monitor (1024×768)

IPM1205-XGA

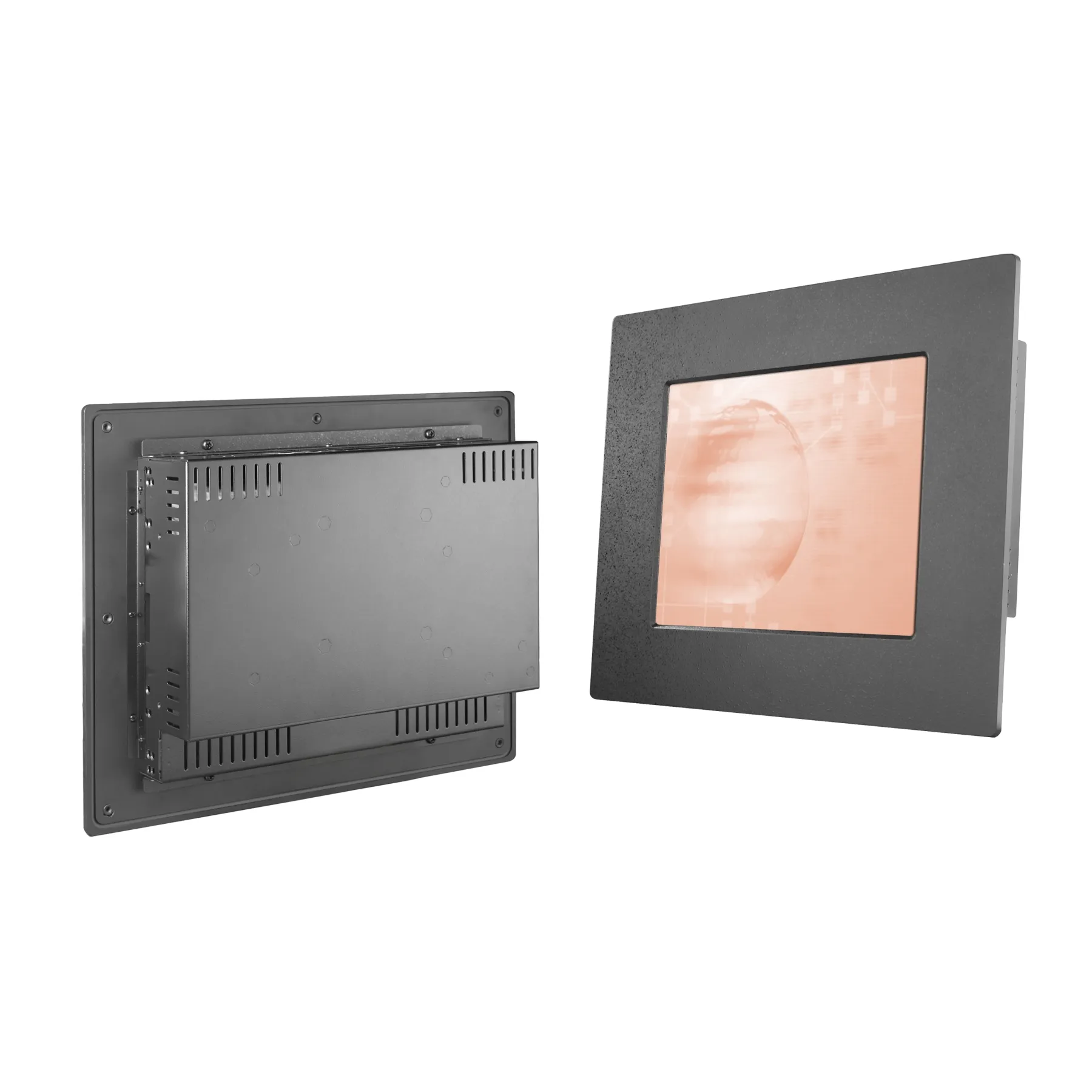

The IPM1205-XGA from manufacturer Winsonic is a 12.1" XGA IP65 rated industrial front panel mount monitor. Designed with a gasket seal embedded into a robust steel bezel that when fitted into an aperture/panel creates a tight waterproof and dustproof seal, ideal for harsh working environments. The product is available with optional touchscreen and a variety of video inputs.

Brand: Winsonic
Ideal for harsh environments
200 NITS brightness
1024 x 768 resolution
Touchscreen optional
Size: 380mm (W) x 310mm (H) x 60mm (D)

Product Code: IPM1205-XGA

Categories: Industrial Monitors, IP65 Monitors, Panel Mount Monitors, Winsonic

Range: Winsonic

Details

Ordering Info

IPM1205-XGA: 12.1″ IP65 Panel Mount LCD Monitor with VGA Input

Downloads

IPM1205-XGA Datasheet (PDF)

0.06MB

IPM1205-XGA Mechanical Datasheet (PDF)

0.07MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Viewable Image Size: 12.1″
Resolution: 1024×768
Ratio: 4:3
Brightness: 200cd/m2
Contrast: 500:1
Viewing Angle: H (-45 +45), V (-45 +20)
Bezel: Powder Coated Steel
Backlight: CCFL
VGA: 1 x DB15
Video Inputs: S-Video, Composite, HDMI & DVI (On request)
Touchscreen: Optional
Power: 12VDC with AC Adaptor

Screen Size	11" to 20", 12.1"
