10″ Widescreen Panel Mount Touchscreen Monitor (1024×600)
End of Life
- Brand: Winsonic
- 1024 x 600 resolution
- 200 NITS brightness
- Resistive, Capacitive, SAW or Infrared touch options
- Size: 340mm (W) x 240mm (H) x 56mm (D)
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details

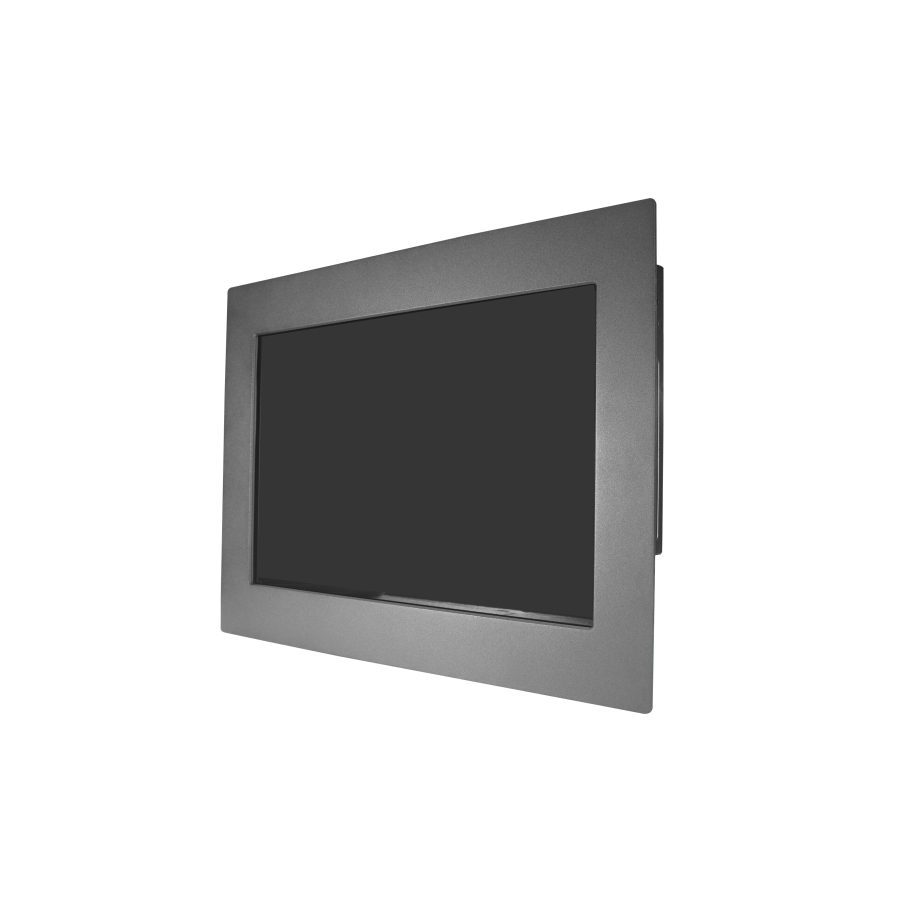

The PM1016 from manufacturer Winsonic is a 10" front widescreen panel mount touchscreen monitor. With its sleek mechanical design it provides flexible product configuration and easy maintenance. The PM1016 is LED Backlit and comes available with auto-brightness sensor that offers application in day and night. The product is available with Resistive, Capacitive, SAW or Infrared touchscreen and a variety of video inputs, including a VGA connector with optional AV, SV and AV-Looping.
Ordering Info
- PM1016: 10″ Widescreen Panel Mount Touchscreen Monitor (1024×600)
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Viewable Image Size: Wide / 10″
- Resolution: 1024 x 600
- Aspect Ratio: 16:9
- Brightness: 200cd/m
- Contrast: 650:1
- Viewing Angle: H (-45 +645), V (-45 +25)
- Bezel: Powder Coated Steel
- Backlight: LED
- VGA: 1 x (15 Pin Female D-Sub)
- Video Inputs: VGA
- Touchscreen: Resistive, Capacitive, SAW or Infrared
- Power: 12VDC with AC Adaptor
| Screen Size | 1" to 10", 10" |
|---|
